Pond Aeration System Sizing & Kit Guide
Choosing the right pond aeration system starts with three key factors: pond size, depth, and shape. For most ponds up to 1 acre, a linear diaphragm aeration kit is the most cost-effective and efficient solution.
What Size Pond Aeration System Do I Need?

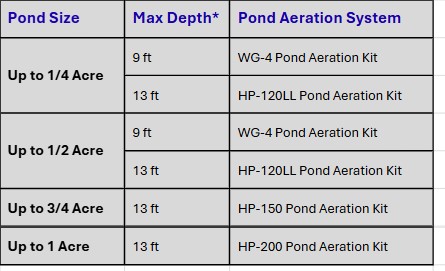

Below is a generic sizing chart for ponds up to 1 acre. However, every pond is different, and shape is a major factor. We encourage you to continue reading to determine the best-sized pond aeration system for your pond.
*Max depth is based on using HIBLOW’s Adjustable Height Diffuser at its highest setting of 3′
How does the pond shape impact system sizing?
There are two major advantages of subsurface (bottom-diffused) aeration over fountains and surface aerators. Subsurface aeration adds dissolved oxygen and creates water circulation from the bottom up. Water circulation is the most important factor. The goal is to move every molecule of water to the surface daily, or multiple times per day. At the surface, water absorbs oxygen and then cycles back to the bottom. This process eliminates stratification, allows toxic gases to escape, and evens oxygen levels throughout the water column. Oxygen supports beneficial bacteria that reduce muck, improve water clarity, promote fish growth, and help prevent algae blooms.
Choosing the correct number of diffusers is critical to mixing the entire pond. You may be able to use only one diffuser for a 1/4-acre round pond, but if a 1/4-acre pond is irregularly shaped with coves, multiple diffusers may be needed to ensure proper circulation. Additional diffusers may require more airflow and a larger pond aeration system.
Pond Aeration System Sizing Steps:
Step 1: Estimate how many diffusers you need to mix your pond, based on shape and size.
Step 2: Determine how much airflow each diffuser requires to “self-clean.”
Ensuring your diffuser does not clog is very important, as a clogged diffuser reduces airflow and puts stress on the pond aerator. Most diffuser manufacturers, including HIBLOW, recommend at least 40 LPM of airflow per diffuser. Read more about pond aeration diffusers here: Pond Aeration System Diffuser Options
Step 3: Estimate the total system backpressure. Click here for step-by-step instructions:
How to Calculate Pond Aeration System Pressure
Calculating system pressure with HIBLOW’s Adjustable Height Diffuser:
HIBLOW’s Adjustable Height Diffuser was designed to allow linear air pumps to be used in ponds as deep as 13′ (when the diffuser is set 3′ off the bottom). To calculate backpressure, depth is measured at the highest point of the diffuser. If the pond is 13′ deep and the diffuser is set 3′ off the bottom, the pressure calculation is based on 10′ of water depth.
Step 4: Using the pressure calculated in Step 3, review the pond aerator’s performance curve to estimate airflow.
Step 5: Divide the LPM (airflow) estimated in Step 4 by the quantity of diffusers estimated in Step 1.
Does that number equal 40 LPM or more? If not, move up to the next size package.
Example:

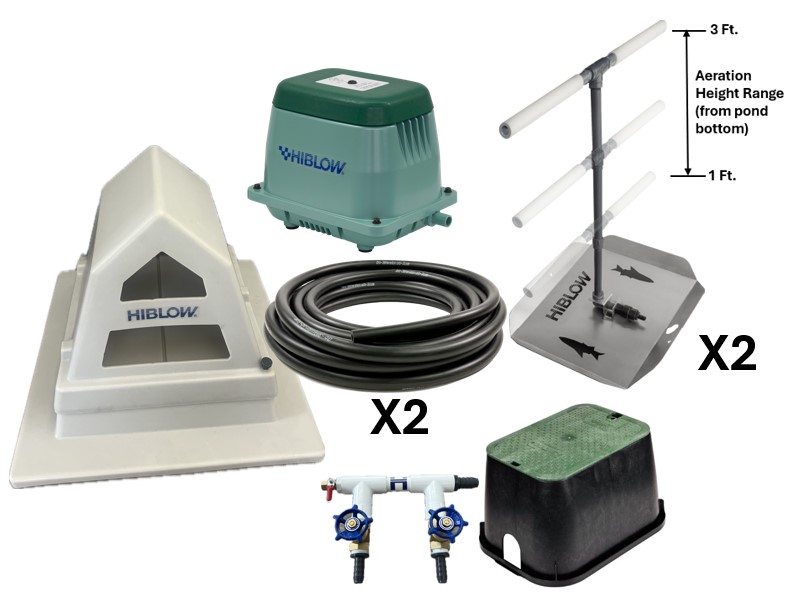

I estimated that three diffusers were needed to aerate an odd-shaped 1/2-acre pond. Based on the chart above, I am considering an HP-120LL Pond Aeration Kit. I calculated the total system pressure (see Step 3) at 4 PSI. Following the green curve below, the airflow at 4 PSI is around 90 LPM.
90 LPM ÷ 3 diffusers = 30 LPM per diffuser.
This is not enough airflow to “self-clean” each diffuser, so I likely need to size up to the HP-150 Pond Aeration Kit.
Need only two diffusers? The HP-120LL Pond Aeration Kit is sufficient, as you would get 45 LPM to each diffuser if properly balanced.
As you can see in the HP-150 graph below, the airflow at 4 PSI is well over 120 LPM. The HP-150 Pond Aeration Kit is the right choice.
HIBLOW Pond Aeration Kits Features and Benefits:
World Class Pond Aerator
HIBLOW pond aerators handle depth better than the competition, have the longest service life in the industry, and are easy to maintain. There’s no need to replace a HIBLOW pump when the diaphragms rupture after years of use. Simply rebuild the pump a few times in 20 minutes or less for a fraction of the cost of a new aerator. Pay a little more upfront to save time, hassle, and money in the long term.
Adjustable Height Diffuser (AHD)
The first of its kind, it allows HIBLOW aerators to be used at greater depths—historically reserved for rocking piston air pumps. Rocking piston pumps are effective for deeper bodies of water, but they are harder to maintain, noisier, and much less energy efficient—so why use them if you don’t have to?
Have an older pond or substantial muck buildup? Use the diffuser at its lowest setting of 12″ to prevent muck from stirring and circulating throughout the pond. The AHD is also excellent for winter pond aeration, helping maintain a hole in the ice while allowing for stratification so fish can take refuge in warmer water at the bottom.
2 and 3 Port Precision Control Manifolds
HIBLOW heavy-duty manifolds utilize gate valves that open and close gradually, allowing for precise airflow balancing. Most pond manifolds use quarter-turn ball valves, which provide only limited adjustment. HIBLOW manifolds also include a blowout valve to remove condensation from the airline. Condensation in the airline can create substantial backpressure, reducing airflow and stressing the aerator. Periodically close the gate valves and open the blowout valve to purge condensation.
High Quality Weighted Airline
Optional Accessories:
Pond Aerator Cover and Manifold Valve Box
Learn more about all HIBLOW Pond Aeration Kits here: HIBLOW Pond Aeration Kits
